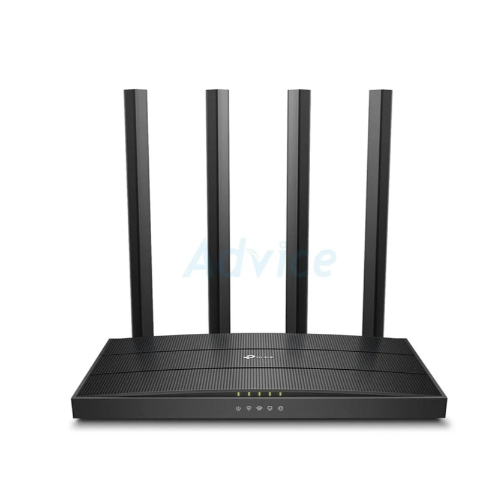

Router TP-LINK (Archer C6_V4) Wireless AC1200 Dual Band Gigabit - A0146038

Wireless Standards : IEEE 802.11ac/n/a 5 GHz , IEEE 802.11n/b/g 2.4 GHz Signal Rate : Wireless AC1200 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 400 Mbps Interface 1× Gigabit WAN Port 4× Gigabit LAN Ports Antenna Type : 4× Fixed High-Performance Antennas Processor : Dual-Core CPU Working Modes : Router Mode , Access Point Mode MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance Boosted Coverage – Four external antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals Access Point Mode –Supports AP Mode to transform your wired connection into the wireless network Easy Setup – Set up your Wi-Fi in minutes with TP-Link Tether app.

เหลือ 2 ชิ้น
ราคา

1,090

บาท

รายละเอียดสินค้า

คุณสมบัติ

BrandTP-LINK
Model

Archer C6 V4

Standards

Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

Antennas

4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

Transmit/Receive

WiFi Transmission Power
CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity
5GHz:
11a 6Mbps:-93dBm; 11a 54Mbps:-78dBm
11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm;

Frequency

AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)

Range

3 Bedroom Houses

Wireless Functions

Dual-Band
Allocate devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

Safety Standards

WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

Processor Specs

1.2 GHz CPU

Size of RAM

N/A

LEDS

Yes

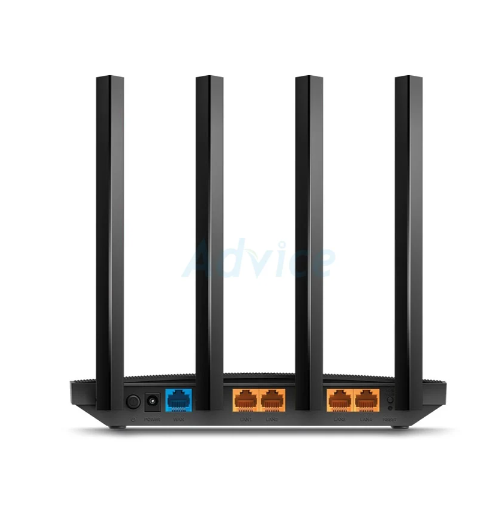

Interface

1 x Gigabit WAN Port
4 x Gigabit LAN Ports

USB Interface

None

Button

WPS/Wi-Fi Button
Power On/Off Button
Reset Button

Operation Mode

Router Mode
Access Point Mode

Management

Tether App
Webpage

Firewall

SPI Firewall

IPv6 support

Yes

Features

Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network
OneMesh™ Supported
Parental Controls
NAT Forwarding
IPTV

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Power Supply

12V / 1A

Environment

Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certification

FCC, CE, RoHS

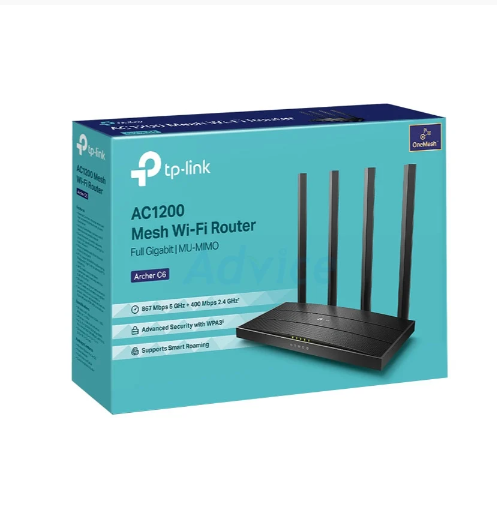

Package Contents

Wi-Fi Router Archer C6
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

Dimension(W x D x H) : 21.50 x 11.70 x 3.20 cm
Net Weight0.00 KG
Package Dimension(W x D x H) : 24.00 x 35.00 x 8.00 cm
Gross Weight0.60 KG
Volume6,720.00 cm3
